One of my first tasks at Epic was to write a Select node for Niagara’s module and function script assets. It now serves as the replacement for the If node and offers a vastly better user experience. Most of these improvements have also gone into the Static Switch node.
The Select node has multiple improvements over the If node. Functionally, it allows a larger number of cases rather than just two (True and False) by using enums or integers instead. Previously, to choose one of four floats, one had to chain 3 If nodes. Now one can use a single Select node with four cases.
On first glance, there are three things that stand out visually.
- Updated UI for case labels.

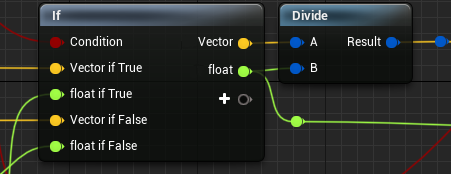

This is due to no longer having “if [Case]” labels included in the pin names. With a low number of cases and outputs, the If node was still fairly readable, but with a larger number of cases the visual noise coming from the pin names made it hard to differentiate and search for specific pins. Instead, we now have section dividers with case labels. This makes it easier to find what you are looking for and introduces a visual guide for the user to use as orientation.
- Type Selector widget next to outputs and selector pin.
This is a widget and can be used to retroactively change pin types. Before, the only way to do this was to add a new output variable and delete the old one.
- More selector types than just bool.
We can select based on integers and enums, too.
- The bool selector type replaces the previous If node directly. Two cases are constructed per output value; one for True and one for False.
- The enum selector type lets you choose an enum and will create one input pin per case per output values. In the video above, the enum has 4 entries, and 3 output variables. This means there will be 4 sections with 3 input pins each.
- The integer selector type starts with two cases for 0 and 1 (fewer than 2 cases would make the node redundant) and offers new buttons to add or remove cases.
And all of these types can be chosen after the fact due to the type selector.
Wildcard pin types
When creating a fresh Select node, it looks like this. It has neither a selector type nor any output pins. While the “add pin” can be used as always to add new output variables of a specific type, the selector pin type can either be changed by using the type selector widget or by creating a connection with valid pins. After choosing bool as selector type, the node looks like this:
These new pins have the wildcard type, and they work similarly to wildcard pins in Blueprint. When working with the node, it can look like this:
